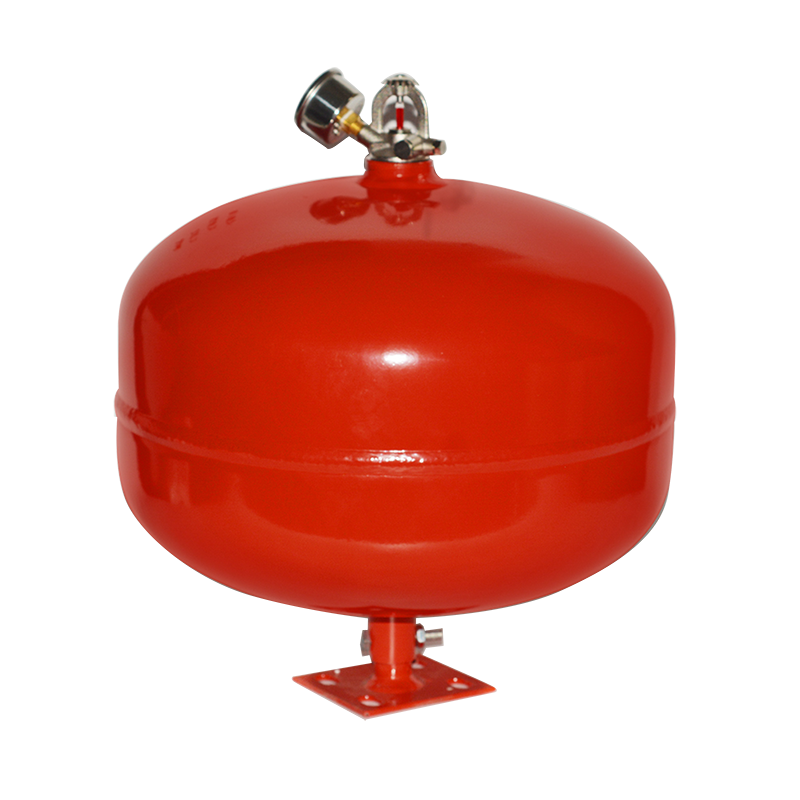

Suspend heptafluoropropane fire extinguishing devices

Product Introduction:
Heptafluoropropane (HFC-227ea, FM-200) is a colorless, odorless, and non-conductive gas. It is characterized by its cleanliness, low toxicity, good electrical insulation, and high fire extinguishing efficiency. Particularly, it does not damage the ozone layer and has a relatively short residual time in the atmosphere. Its environmental performance is significantly better than that of halogenated alkanes. It is one of the most successfully developed clean gas fire extinguishing agents so far and is regarded as the most ideal product to replace halon 1301 and 1211.
The suspended heptafluoropropane fire extinguishing device (constant-temperature type) mainly relies on the expansion of the room-temperature glass ball of the valve due to heat during a fire, causing it to break and open the valve to release the fire extinguishing agent. This device features advanced design, reliable performance, simple operation, and good environmental protection.

Main technical parameters of the device:

Product structure:

It is mainly composed of a fire extinguishing agent storage device and a temperature-sensing release component.
Among them, the parameters of the storage device are as follows:

Device model	The amount of fire extinguishing agent filled(KG)	Tank volume(L)	Storage pressure(Mpa)	Injection time(S)	Startup mode
XQQW8/1.6	8	8	1.6	<10	Temperature sensing
XQQW10/1.6	10	10	1.6	<10
XQQW20/1.6	20	20	1.6	<10
XQQW30/1.6	30	30	1.6	<10

The parameters of the temperature-sensing release component are as follows:

Device model	Sensing temperature: ℃	Tank volume(L)	Storage pressure(Mpa)	Connection thread
XQQW8/1.6	68	8	1.6	M30×2
XQQW10/1.6	68	10	1.6	M30×2
XQQW20/1.6	68	20	1.6	M30×2
XQQW30/1.6	68	30	1.6	M30×2

After-sales commitment:
1 For the products sold by our company, the warranty period shall be based on the date of signing the contract between both parties. If any problem occurs with the products sold by our company during the warranty period, please report the operation status of each equipment component to our company in writing or by phone.
2 The entire maintenance process of the project will be comprehensively maintained and managed by our company's construction team, and we will never subcontract it to any external parties.
3 During the maintenance period, if any technical problems occur, our company will dispatch technicians to the site for comprehensive debugging and report in writing whether the operation of each piece of equipment and component is normal, and obtain the approval of both Party A and Party B.
4 Our company strictly follows the requirements of the ISO9001 international quality system certification procedures for the entire fire protection maintenance work for maintenance and management.
5 If the products installed by our company cannot be used normally after inspection and repair by our technicians, our company will replace them free of charge.
6 We will strictly abide by all the rules and regulations of your organization, complete the product inspection and maintenance on time and to a high standard as required by your organization, and restore the normal operation of the fire protection equipment as soon as possible. And ensure that it does not impede the normal operation of your organization and the protection of your mechanical equipment.

We have the confidence, conditions and ability to fully cooperate with your organization to complete the maintenance and repair tasks of the fire protection project. Meanwhile, we sincerely invite your organization to visit our company for guidance at any time and hope to receive your valuable opinions. To further advance our work, we will, as always, adhere to the principle of "completing one project, establishing one brand, and making a group of friends", and actively cooperate with your organization to ensure the safety, stability and reliability of fire protection maintenance work.

FAQ:
Q: Are you a trading company or a manufacturer?
A: We are both a manufacturer and a trading company. We have owned our own factory for nearly 15 years and are committed to providing superior service to our overseas customers.

Q: Can you do OEM production?
A: We accept all OEM orders. Simply contact us with your design proposal and we will provide you with a reasonable price as soon as possible.

Q: How do you ensure product quality?
A: We have TUV/SGS/ISO quality control systems and strictly enforce them. We have a professional quality inspection team, and each packer conducts a final inspection before packaging according to the quality inspection instructions.

Q: In addition to FM200 systems, do you offer other conventional firefighting equipment?
A: Of course. We have a full range of professional firefighting equipment, from sound and light alarms to wind and smoke dampers, as well as FM200, CO2, and Novec1230 fire extinguishing systems. Feel free to inquire!

Q: What is the delivery time?
A: Depending on the minimum order quantity, we ship within 10-15 business days after receiving the deposit. 20-foot container orders typically take 30-35 days to complete.
Please inquire about specific delivery times based on your order quantity.

GUANGZHOU XINGJIN FIRE EQUIPMENT CO., LTD. is a professional manufacturer of making and installing fm200 fire suppression system and other fire fighting equipments.

Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200), Novec1230, CO2 & Inert gas productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular FM200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. Besides, our inert gas fire suppression systems are also more and more popular, such as IG541(inergen) fire suppression system, IG100(nitrogen) fire suppression system, IG55(argon) fire suppression system. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in around the world.

LOCATION:

Guangzhou xingjin fire equipment co., ltd. has a subsidiary called Guangzhou Xing You Rong Trade Co.,Ltd. This two companies locate in different places. Guangzhou xingjin fire equipment co., ltd. set himself at Shilou town, Panyu district, Guangzhou, and its subsidiary locates at Room 703&704, N0.2 Building, NO.8 Lianyun Erheng Road, Shiqi Town, Panyu District, Guangzhou, China.

Factory Overview:

The company's office and factory are not seperated. These two contain in the same buiding and the first floor is for factory use, the second floor for office use. We here has estabilished a professional project design team and an excellent install and after-sale service team. Our good service and best quality have won a lot of good feedbacks from customers, but we still keep improving our technique trying to innovate more new fire fighting products.

Honors:

Since established in 2010, the company has won a lot of praise and honors. The title "AA level credit company" was given to us by China Fire Protection Association in 2014. Besides, all our products pass the CCC test that means the quality has been regconized.

Products:

The main products of our company is the fm200 series, at the same time we also sale other fire fighting equipment, such as the anti-poison respirator, fire resistance rolling shutter and so on.

The fm200 fire suppression series have been divided into three big types. They are pipe network type fm200 fire suppression system, carbinet type fm200 fire suppression system, hanging type fm200 fire suppression system. This kind of products have widely regconized as the best substitute to the halon series.

Main Markets:

Our target customers are those people who require fire fighting equipments all over the world. So far, we have rapidly developed markets in Southeast Asia, the Middle East and Africa. In the following years, we will strive for other foreign markets.

We are ready for challenges, so please do not hesitate to send an inquiry to us!
