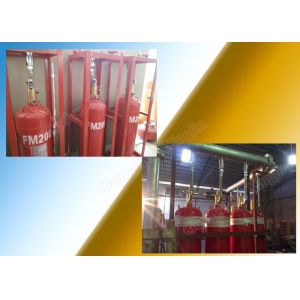

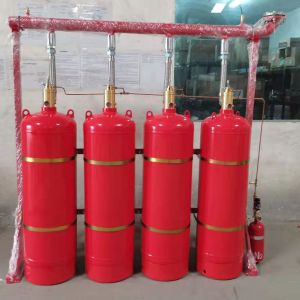

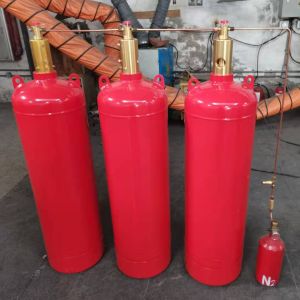

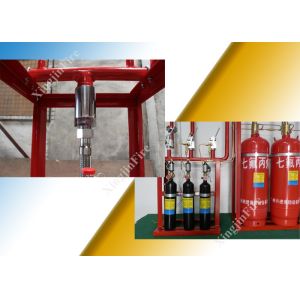

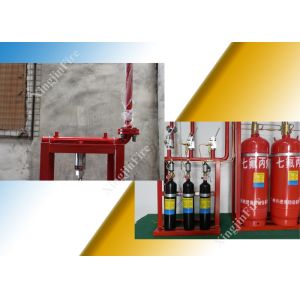

The 100L Gas Fire Suppression System is a 5.6 MPa FM200 (HFC-227ea) solution featuring 100L of storage capacity. It is engineered for reliable, automatic fire protection across single or multiple protected zones.

FM200 (HFC-227ea) is a colorless, tasteless, non-corrosive, and electrically insulating extinguishing gas that leaves no residue or pollution after discharge. Its Ozone Depletion Potential (ODP) is zero, making it an environmentally friendly extinguishing agent. These properties also make it suitable for special locations where electrical fires are likely to occur.

Combined with the extinguishing device and electronic accessories, the entire system can be actuated automatically. It monitors the protected region through detectors and can start the extinguishing device via a solenoid actuator automatically, achieving full automation. This eliminates the risk of a fire going unnoticed when no one is present and reduces the cost of employing personnel to supervise the protected area.

Management of multiple zones is also safely handled by the whole system. A single system can protect multiple zones through selective valves, allowing the system to target different protected zones alternately. The agent is discharged only into the zone where the fire occurs, ensuring efficient fire extinguishing in a short time. Note that a small room should be reserved as storage space for the entire system.

The system is suitable for protecting sensitive and high-value environments, including:

• Electronic computer rooms and data processing centers
• Telecommunications facilities and process control rooms
• Expensive medical equipment and industrial equipment
• Libraries, museums, and art galleries
• Clean rooms and anechoic chambers
• Emergency power facilities and flammable liquid storage areas

It is also ideal for locations where fire is likely to occur, such as:

• Paint-spraying production lines and aging-electrical equipment
• Rolling machines, printing machines, and oil switches
• Oil-immersed transformers and melt impregnating tanks
• Large generators and drying equipment
• Cement production processes involving pulverized coal
• Ship engine rooms and cargo holds

The pipe network FM200 system offers multiple-zone management with selector valves, balanced spraying across large zones through the pipeline, management of different floors, and overall protection.

• Management of multiple zones
• Efficient fire protection in large regions
• Less occupation of fire-controlled space
• Relatively lower cost than cabinet or hanging type systems when the zone is large and multiple

Guangzhou Xingjin Fire Equipment Co., Ltd. is located in Guangzhou, a vital hub connecting China with the rest of the globe. The company benefits from excellent transportation links and a pleasant environment. As a manufacturer, our professional and experienced team — comprising a program design team, a skilled installation team, a quality detection team, and an after-sales service team — is dedicated to the research and development of HFC-227ea (FM200) products.

Our product range includes the FM200 fire suppression system, cabinet-type FM200 fire suppression system, automated FM200 fire extinguisher (ceiling-mounted style), fire detecting tube suppression system, and automatic fire suppression tube. Thanks to high-quality products and services and a strong reputation, our company is well received by customers throughout China.

• 5-year quality guarantee
• High-efficiency management system
• Advanced equipment and professional engineers ensuring all products are highly satisfactory
• 8×6 hours of technical support and service

• An efficient sales and after-sales team to resolve all client questions promptly
• 8×6 hours of technical support and service
