Tasteless Piping Fm200 Fire Suppression System Pipe Network System
Parameter:
| No. | specification | Technical Parameter |
| 1 | Filling pressure | 5.6Mpa |
| 2 | Scale of Protective region for one zone | area:max single-zone is 800m² volume:max single-zone is 3600m³ |
| 3 | Spraying time | ≤10s |
| 4 | Filling density | ≤1080kg/m3 |
| 5 | power | DC24V/1.6A |
| 6 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) |
| 7 | Condition of reserving room for container | temperature: -10~50℃, relative humidity: ≤97% |
| 8 | max working pressure | 8.0Mpa |
| 9 | min working pressure | 4.6Mpa |
Applications:
1.Clean gas, colorless and tasteless and non-corrosive
2. Electric insulation, utilization for extinguishing of electrical
combustion
3. Totally automatic system
4. Accurate control of protection zone
5. Multiple management in the control of the whole system
6. Agent quantity for biggest zone is enough to protect all zones
through selector valves
Competitive Advantage:
In terms of description of agent, one of its competent advantages
is that it can be used for all kinds of class fires except metal
fire. And it is clean agent. There is no residue and pollution
after extinguishing.
Another one is that fm200 extinguishing system is special for
critical assets or device. It will have no damage for your
property. Relatively, it is cheap and effective to be chosen as
fire suppression system.
It is very efficient for you to protect your possession. Since it
is a system, it include extinguishing device to put out fire at
short time, specially, shorter than 10 second. It means all agent
will be discharged in so short time. Then it will be flooding
overall. In addition, it has time-delay mechanism. It is around 2
minute. It means when fire happens, there is enough time left to
evacuate people from hazardous place.
It can let multiple zones are protectively in the control of one
system. Then it will save much money for big and multiple zones
Simulated diagram:
Below attached is one mimic diagram of 5.6Mpa Piping Fm200
Suppression
Composition:

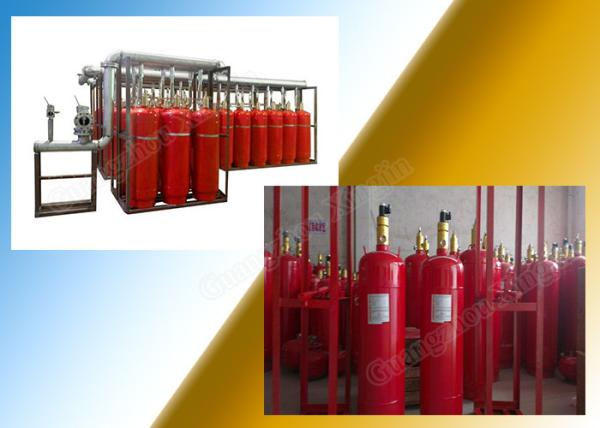

1. Mechanical parts: cylinder with container valve, frame for
cylinder group, driving cylinder, frame for driving device, high
pressure hose etc. It is mainly used for storing fm200 agent
2. Electrical parts: smoke detector, heat detector, bell etc.
3. Pipe fittings: conduit, connector, elbow, flange etc.
Working principle:
The way of putting out the fire: whole flooding way
The process of the system activated: a fire happens → the smoke
detector catches smoke and sends signal to control panel → control
panel get signal and activates the alarm bell to tell people to get
out of the building → the heat detector feels the heat and sends
signal back to control panel → control panel gets both signal from
smoke and heat detector, after a few seconds' delay, starts the
fire extinguishing device → fm200 fire agent sparys from the nozzle
and puts out the fire.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by
convenient transportation and beautiful environment, is located in
Guangzhou, which plays an important role in communication between
China and the world. We are a manufacturer, and we devote ourselves
to the study and development of HFC-227ea (FM200) productions with
our professional and mature team including the program design team,
the skillful installation team, the quality detecting team and the
after-sell service team. Nowadays, our popular fm200 products are
widely used, such as the pipe network FM200 fire suppression
system, the cabinet type FM200 fire suppression system, the
automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system
and automatic fire suppression tube. As a result of high-quality
products and services as well as the good reputation, our company
is well-received by the customers in China.
Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all
products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove
all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong,
China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a
taxi or come here by subway. If you come here by subway, you need
to take the line four and get off at Shiqi station. Then walk out
the station for taking No. 126 bus and get off at Yuexi station.
