CNAS Certified 60s Spraying Time Enclosed Flooding CO2 Fire Suppression System and CO2 Fire Extinguishing System

    Buy cheap CNAS Certified 60s Spraying Time Enclosed Flooding CO2 Fire Suppression System and CO2 Fire Extinguishing System from wholesalers

    Buy cheap CNAS Certified 60s Spraying Time Enclosed Flooding CO2 Fire Suppression System and CO2 Fire Extinguishing System from wholesalers
    • Buy cheap CNAS Certified 60s Spraying Time Enclosed Flooding CO2 Fire Suppression System and CO2 Fire Extinguishing System from wholesalers

    CNAS Certified 60s Spraying Time Enclosed Flooding CO2 Fire Suppression System and CO2 Fire Extinguishing System

    Ask Lasest Price
    Brand Name : xingjin
    Model Number : QME70
    Certification : CAL,CMA,CNAS,ILAC-MRA,CCC
    Price : negotiation
    Payment Terms : L/C, D/P, T/T, Western Union, Paypal, Credit card
    Supply Ability : 3000 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    CNAS Certified 60s Spraying Time Enclosed Flooding CO2 Fire Suppression System and CO2 Fire Extinguishing System

    Product Overview

    The CNAS High Pressure 60s CO2 Fire Suppression System is an intelligent, automatic fire extinguishing solution that utilizes pressurized CO2 as its extinguishing agent. The pressurized CO2 agent is non-toxic, leaves no residue, and causes no damage to most protected assets after discharge. It offers additional advantages including electrical insulation, no water damage, and highly effective fire suppression performance.

    Depending on the requirements of the protection zone, the system can be configured as either a unit system for a single zone or a combined distribution system for multiple zones. It employs enclosed flooding extinguishing to deliver fire protection for single or multiple protected zones. The system supports three activation modes: automatic, manual, and mechanical emergency control. It features advanced technology, high extinguishing efficiency, and convenient maintenance.

    Technical Specifications
    No.SpecificationTechnical Parameter
    1Device ModelQME70
    2Capacity70 Ltr
    3Filling Volume of Gas42 kg
    4Working Pressure5.7 MPa
    5Max Working Pressure12.4 MPa
    6Spraying Time≤ 60 s
    7Max Filling Rate0.6 kg/L
    8PowerDC 24V / 1.6A
    9Working Pressure of Releasing DeviceContainer Valve: 19 ± 0.95 MPa;
    Manifold: 15 ± 0.75 MPa
    10Nitrogen Pressure of Driving6.0 ± 1.0 MPa (20°C)
    11Condition of Reserving Room for ContainerTemperature: 0 ~ 50°C

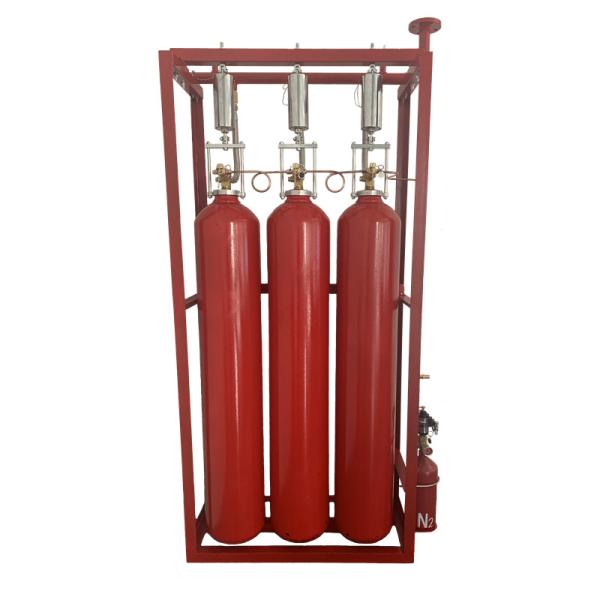

    CNAS high pressure CO2 fire suppression system QME70 container and valve assembly
    Applications

    The system is suitable for protecting a wide range of environments, including:

    • Libraries and archives rooms
    • Electronic computer rooms
    • Electrical substations
    • Telecommunication rooms
    • Hangars and garages
    • Marine engine rooms and cargo holds
    • Paint-spraying rooms and boiler rooms
    • Control centers

    It is suitable for extinguishing all types of fires involving flammable liquids and solid matter, as well as gas fires in which the power supply can be cut off before extinguishing the fire.

    Working Principle

    The illustration below demonstrates the working principle of the complete system.

    Diagram illustrating the working principle of the CO2 fire suppression system, showing container, manifold, releasing device, and protected zone

    System working principle diagram
