FM200 4.2MPa Pipeline Fire Suppression System Without Driving
Device
Description:
• Automatic HFC-227ea/FM200(Heptafluoropropane) fire extinguishing
system is a set of fire extinguishing, automatic control and fire
detection in one system which is the modern intelligent automatic
fire extinguishing device.
• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless,
tasteless, not conduct electricity and no secondary pollution gas.
• The ozone-depleting potential value is zero.
• Cleanness, low toxicity, good electrical insulation, higher fire
extinguishing efficiency.
• It is currently an ideal substitute for the halon extinguishing
agent.
• According to different filling pressure, different capacity,
different extinguishing agent, different starting mode to assemble.
Parameters:
| Specifications | 4.2Mpa system | 5.6Mpa system |
| Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr |
| Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| Filling pressure | 4.2Mpa | 5.6Mpa |
| Max filling rate | 0.95kg/L | 1.08kg/L |
| Discharge time | ≤10s |
| Power | DC24V/1.5A |
| Nitrogen driving device | 6.0±1.0Mpa |
| Storage surroundings | Temperature:-10~50℃
Relative humidity:≤97% |
| Proportion | ≤800m² |
| Volume | ≤3600m³ |
Components:
The pipe network model of fm200 fire suppression system consists of
actually three parts: the pipe network part, the fire fighting equipment part and the
electrical elements part. Here will explain the last two parts for
customers.
The electrical elements is a set of detecting device, and it always
plays a subsidiary role in each system. The electrical elements
includes:several control panels, several manual buttons, some
discharge indicator lights, some alarm bells, some sounder with
light, some smoke detectors and heat detectors.

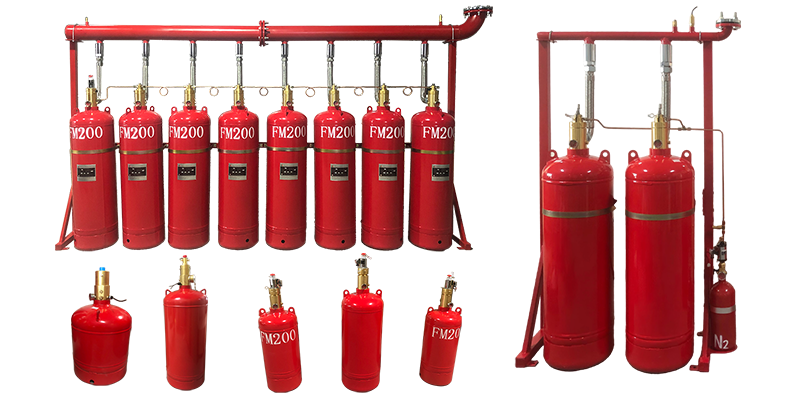

The main part of the system is fire fighting equipment. It is
formed by several components: fm200 cylinders, a cylinder frame,
nitrogen-pressure driving devices, a driving device frame,
container valves, flexible hoses, liquid flow check valves, gas
control pipes, gas flow check valves, manifolds, safety valves,
selective valves, flanges, elbows and nozzles.
Application:
The pipe network model of fm200 fire suppression system is suitable
for a lot of places and several kinds of fires. The followings are
some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Company Introduction:
Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in fire
suppression system. Our Headquarter is located in Panyu District,
Guangzhou, which is the south door of China mainland. Our company
has complete and scientific quality management system.The
sincerity, powerful strength and good quality are recognized by
fire industry. All Xingjin staffs welcome everyone from all
directions and all industries to come here for visit, guidance and
business cooperation.
Our company specializes in all kinds of Heptafluoropropane fire
suppression systems,aerosol fire suppression systems, and we
possess an experienced research and development team who have more
than 20 years work experiences in national fire suppression career.
After-Sale Service
• We have an efficient sales and after sales team to promise slove
all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong,
China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a
taxi or come here by subway. If you come here by subway, you need
to take the line four and get off at Shiqi station. Then walk out
the station for taking No. 126 bus and get off at Yuexi station.
