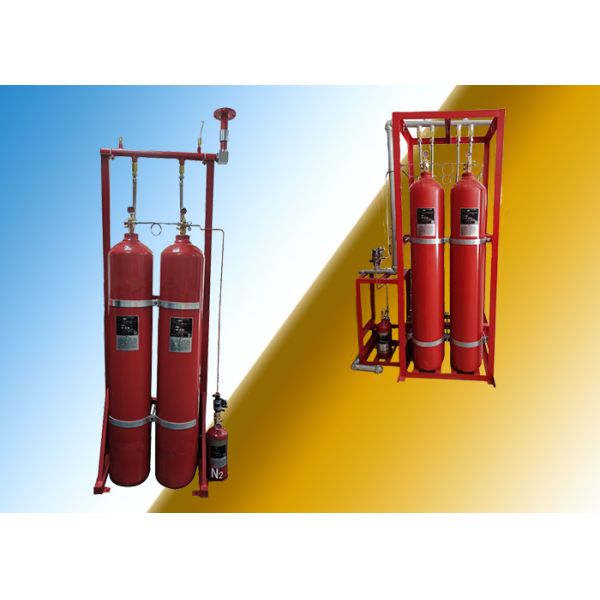

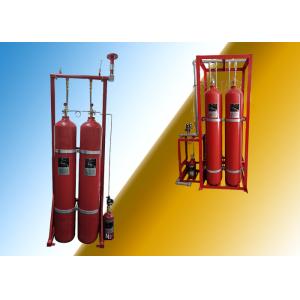

IG-55 fire suppression system

Description

IG-55 fire suppression system

Naturally occurring Gases often used as blends, these blends are used to reduce oxygen to below 15% and above 12%. Oxygen levels below 15% will not allow a fire to burn as the oxygen is simply not there to fuel the fire. Levels of Oxygen between 12% and 15% is adequate to sustain human life. Oxygen levels between 12% and 10% will show visible signs of effects asphyxiation Oxygen levels below 10% are extremely dangerous.

This type of fire suppression is considered a green option and does have many advantages used in the right application.

IG55 fire suppression agent is a blend of 50% Argon & 50% Blend of Nitrogen. The fire suppression gas is blended to offer better buoyancy for the fire suppression agent keeping the fire suppression gas at higher levels in the protected enclosure for longer!

Parameters

Suitable application:

DATA Centres

Comms Rooms

Telecommunication facilities

UPS Rooms

Medical facilities

Packages

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

Advantages

1. Compared with the traditional 15MPa system, the 30MPa system saves 25%-50% of the quantity of extinguisher cylinders.

2. It effectively reduces the floor area between the cylinders and improves the overall use value and utilization rate of the building.

3. Constant low pressure release of 6MPa reduces the cost of piping and components for the whole system.

4. The constant release pressure of 6MPa provides a more durable and effective pressure, with a transmission distance of up to 200 meters.

5. Whole system release by low pressure, it will be less impact on site personnel, equipment and building structure, and it will be more safety.

6. The external constant pressure-relief device only bears the pressure when the system is discharged, which is convenient for disassembly and maintenance, and effectively reduces the system failure rate.

Mimic Diagram

Multiple cylinders for multiple zones

Multiple cylinders for one zone
